Description

Roller conveyor machine is mainly used for processing long and (or) flat shape of the workpiece. These workpieces are continuously passed through the entering chamber, the shot blasting chamber and the cleaning chamber on a special conveyor roller table.

ATHI Special designed small roller Conveyor through type thot blasting machine for cleaning I beam, angel steel, channel steel, tube and manhole cover,etc.

Features

1. No pit, saving extra foundation costs for customers.

2. The design is unique and novel, designed for the relatively short workshops of foreign customers. Equipped with double elevators, the separator is located at the bottom of the equipment, total height of the equipment is only about 4m.

3. Compact structure, overall modular design, all bolted connections, no welding required.

4. The distance between the rollers is small, and workpieces with length more than 500mm can be put on the rollers directly, such as manhole covers,etc. The roller is made of solid wear-resistant Mn13 bar material, service life is up to 6 years.

5. The chamber body is protected by a whole piece of rolled manganese 13 without bolts, reducing maintenance costs and labor intensity. The service life is up to 15,000 hours. There is no need to replace the guard plate within 5 years.

6. The sealing curtains in the front and rear sealing chambers adopt unique patented technology, which is convenient and quick to replace.

7. The reducer is a shaft-mounted reducer, which is durable. long service life time.

8. The electric control system is equipped with remote control equipment, which can easily realize the functions of data collection and remote debugging of field equipment.

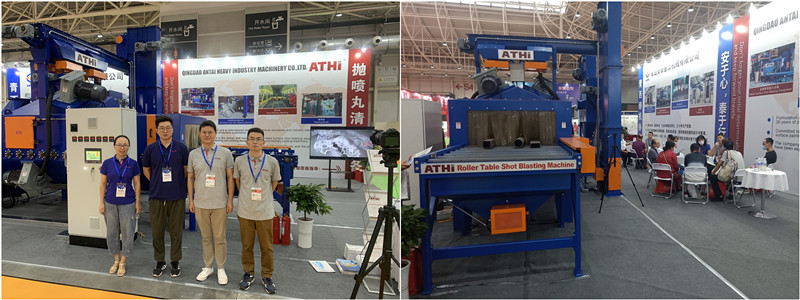

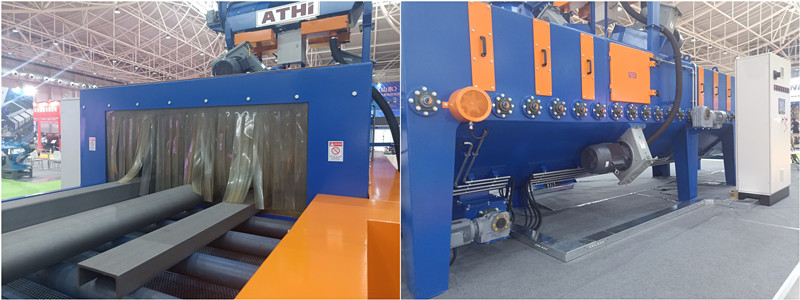

Pictures for reference
