If the machine is not suitable for your workpiece, please tell us the following infromation:
What kind of workpiece will you clean?
What is the maximum size of the workpiece? (length, width and height)
What is the maximum weight of the workpiece?
What is the cleaning efficiency required?
According to your infomation, the most suitable machines will be designed for your workpieces.
Description
The machine is suitable for surface rust removal of work pieces in medium or small quantity batch production with many varieties. Put the work pieces into the barrel and blasting it in side way. The high-speed impeller throws the abrasive to the continuous tumbling castings or forgings in barrel, to remove the greensand or scales on the surface. It cleans evenly and its productivity is high, so it is suitable for cleaning the small work pieces whose weight are under 15g in medium or small-scale casting or forging workshops.
Technical specification
1. Diameter of drum: 1000mm
2. Inside length of drum: 800mm
3. Speed of drum: 3rpm/min
4. Max. Effective capacity: 0.1m3
5. Max. Load (denoting easy-tumbling parts): 300kg
6. Max. Work piece length: 400mm
7. Max. Weight of single work piece 15kg
（some kind of work piece can be up to 30kg）
8. Productivity: 600～1500kg/h
9、Cleaning time in a cycle(general parts)
（1）Iron castings 3～10min
（2）Steel castings 10～20min
（3）Forgings 4～8min

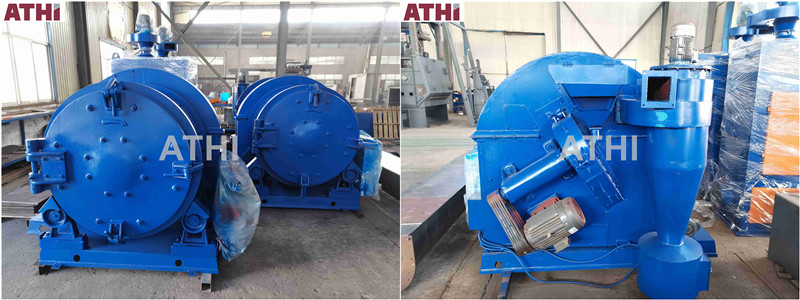

Pictures
